MxDNA, RxDNA and PxDNA
(NEW) Noise Reduction Technology
Dissipative Noise Attentuation
Description
- A unique system to reduce noise by turning it into heat.
- This product connects directly to the 50/60 Hz. power lines.

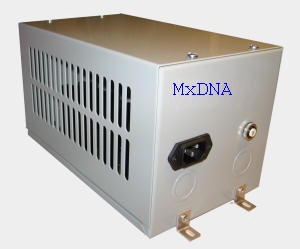

- Mx (max) model is for industrial applications where it is likely that there will be a great deal of noise on the power lines.

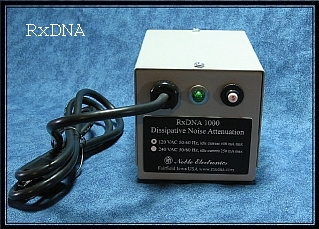

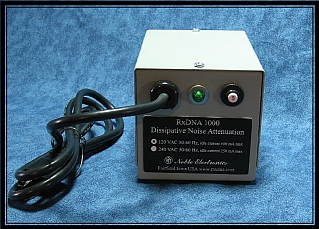

- Rx (residential) model addresses less severe environments.

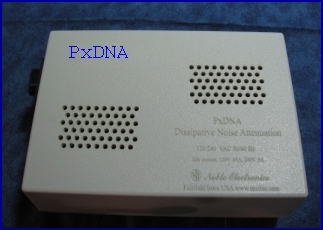

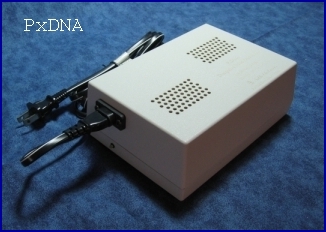

- Px (personal) model for less severe environments and smaller usage areas.
NEW
Click Here: MxDNA Whitepaper, Audiophile Applications
Currently Available Models
| Model Number |
Application
Area |
Applied 50/60 Hz Voltage (VAC) |
Noise Power Dissipation Max. (watts) |
Estimated Attenuation |
| MxDNA2500 |
Industrial, High Noise Voltages |
120 or 240 |
120 |
12 db (Removed 93.7%) |
| MxDNA1250 |
Industrial, Medium Noise Voltages |
120 or 240 |
120 |
17db (Removed 98.0%) |
| RxDNA1000 |
Residential, Moderate Noise Voltages |
120 or 240 |
60 |
18 db (Removed 98.4%) |
| NEW PxDNA1000 |
Personal Residential, Moderate Noise Voltages |
120/240 |
10 |
18 db (Removed 98.4%) |
Testimonials
I have used my unit since early August, 2008 and am happy to share my experiences. Some folks have sensory abilities so keen they are able to pick up changes in the EMF environment almost instantaneously. I am not one of those. I have not detected any instantaneous sensation of less electrical noise as some people might. However, since I installed the unit in my bedroom, I seem to be sleeping more soundly. I awake in the morning feeling more rested than before, even though I have not slept longer, maybe even for a shorter period. There also may be a more positive attitude about everything surrounding my sleep. During preparation for bed, I seem to feel more positive than before. And similarly in the morning, upon waking, there is a positive mood almost every day now. It is difficult to be certain if the unit is responsible for these changes, but perhaps I will try removing it for a few days just to see if I can notice the difference.
Dr. Ken Walton
Ecco Village
Fairfield, Iowa, USA
|
Data From In Situ Tests: Model PxDNA1000 NEW
NOTE: These are single frequency (stimulus/measurement) tests where a single stimulus frequency is injected into the network (AC power line network) and the attenuation at that specific fequency is measured only.
| Environment |
Band Center Frequency kHz |
Attenuation |
| General Residential |
5 |
6.9 db (Removed 79.8%) |
| General Residential |
10 |
13.1 db (Removed 95.1%) |
| General Residential |
30 |
18.8 db (Removed 98.7%) |
| General Residential |
100 |
9.5 db (Removed 88.9%) |
| General Residential |
300 |
7.2 db (Removed 80.9%) |
Data From In Situ Tests: Comparing RxDNA1000 and Model PxDNA1000 NEW
NOTE: These are single frequency stimulus and multi-frequency measurement tests where a single stimulus frequency is injected into the network (AC power line network) and the attenuation is measured by a wide band measurment instrument that covers 5 kHz to 100 kHz.
| Environment |
Band Center Frequency kHz |
Attenuation PxDNA NEW |
Attenuation RxDNA |
| General Residential |
5 |
11.3 db (Removed 92.6%) |
11.4 db (Removed 92.8%) |
| General Residential |
10 |
11.6 db (Removed 93.1%) |
12.0 db (Removed 93.7%) |
| General Residential |
30 |
12.7 db (Removed 94.6%) |
13.5 db (Removed 95.5%) |
| General Residential |
100 |
6.0 db (Removed 74.9%) |
4.0 db (Removed 60.2%) |
Data From In Situ Tests: Models MxDNA2500, MxDNA1250
| Environment |
Band Center Frequency kHz |
Attenuation, 2500 |
Attenuation, 1250 |
| General Residential |
10 |
14 db |
15 db |
| General Residential |
20 |
20 db |
12 db |
| General Residential |
30 |
15 db |
17 db |
| General Residential |
50 |
12 db |
14 db |
| General Residential |
80 |
14 db |
14 db |
| General Residential |
100 |
11 db |
12 db |
| General Residential |
200 |
10 db |
12 db |
| General Residential |
300 |
12 db |
12 db |
| General Residential |
400 |
14 db |
14 db |
| General Residential |
560 |
12 db |
10 db |
| Residential, Wind Mill With 60 Hz Inverter |
10 |
14 db |
| Residential, Wind Mill With 60 Hz Inverter |
20 |
16 db |
| Residential, Wind Mill With 60 Hz Inverter |
30 |
14 db |
| Residential, Wind Mill With 60 Hz Inverter |
50 |
14 db |
| Residential, Wind Mill With 60 Hz Inverter |
80 |
12 db |
| Residential, Wind Mill With 60 Hz Inverter |
100 |
14 db |
| Residential, Wind Mill With 60 Hz Inverter |
200 |
10 db |
| Light Industrial Motor (compressor) Noise |
20 |
12 db |
| Light Industrial Motor (compressor) Noise |
40 |
12 db |
| Light Industrial Motor (compressor) Noise |
60 |
7 db |
| Light Industrial Motor (compressor) Noise |
80 |
8 db |
| Light Industrial Motor (compressor) Noise |
100 |
8 db |
3 db is a 2 times greater reduction of noise.
6 db is a 4 times greater reduction of noise.
10 db is a 10 times greater reduction of noise.
13 db is a 20 times greater reduction of noise.
16 db is a 40 times greater reduction of noise.
20 db is a 100 times greater reduction of noise.
